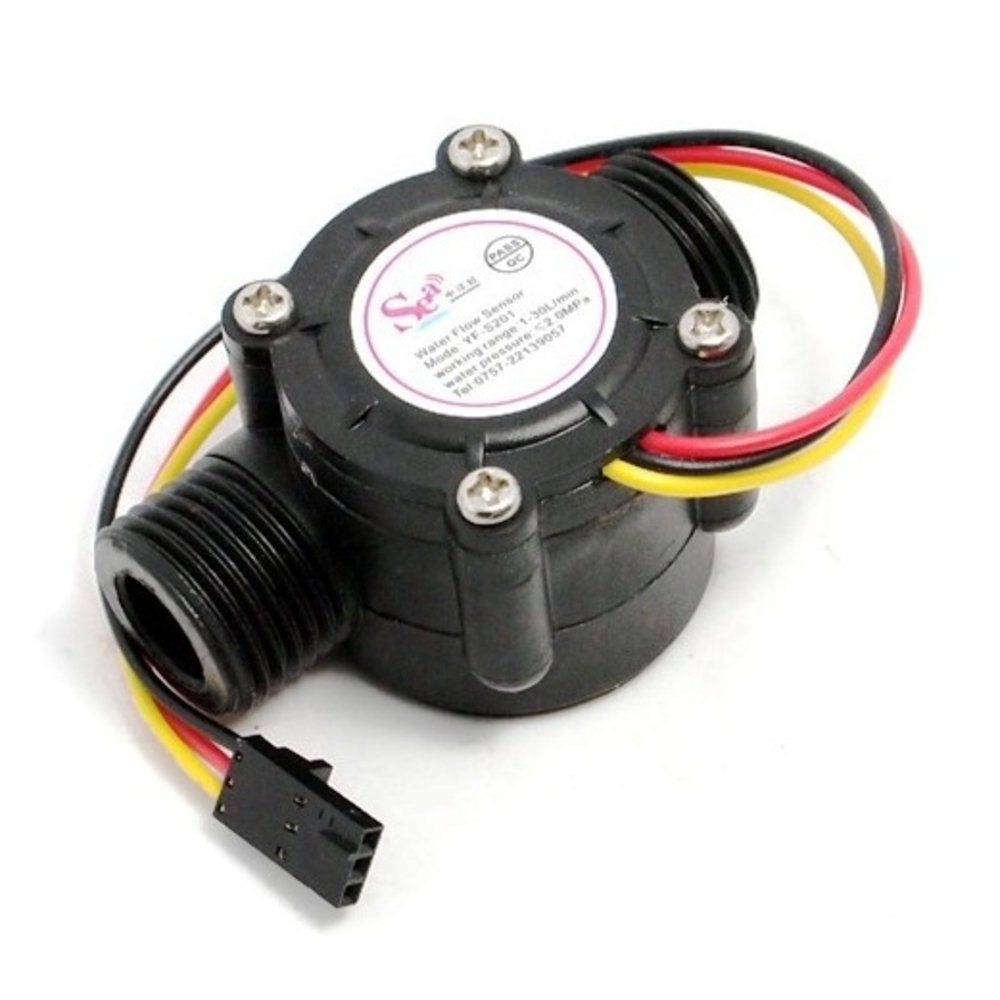

Waterflowsensor 1-30 liter per minuut

Artikelnummer: VZ19
Beschikbaarheid: Op voorraad

Waterflowsensor 1-30 liter per minuut

  • Sensor Type: Hall effect
  • Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
  • Max current draw: 15mA @ 5V
  • Output Type: 5V TTL
  • Working Flow Rate: 1 to 30 Liters/Minute
  • Working Temperature range: -25 to +80℃
  • Working Humidity Range: 35%-80% RH
  • Accuracy: ±10%
  • Maximum water pressure: 2.0 MPa
  • Output duty cycle: 50% +-10%
  • Output rise time: 0.04us
  • Output fall time: 0.18us
  • Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
  • Pulses per Liter: 450
  • Durability: minimum 300,000 cycles
  • Cable length: 15cm
  • 1/2" nominal pipe connections, 0.78" outer diameter, 1/2" of thread
