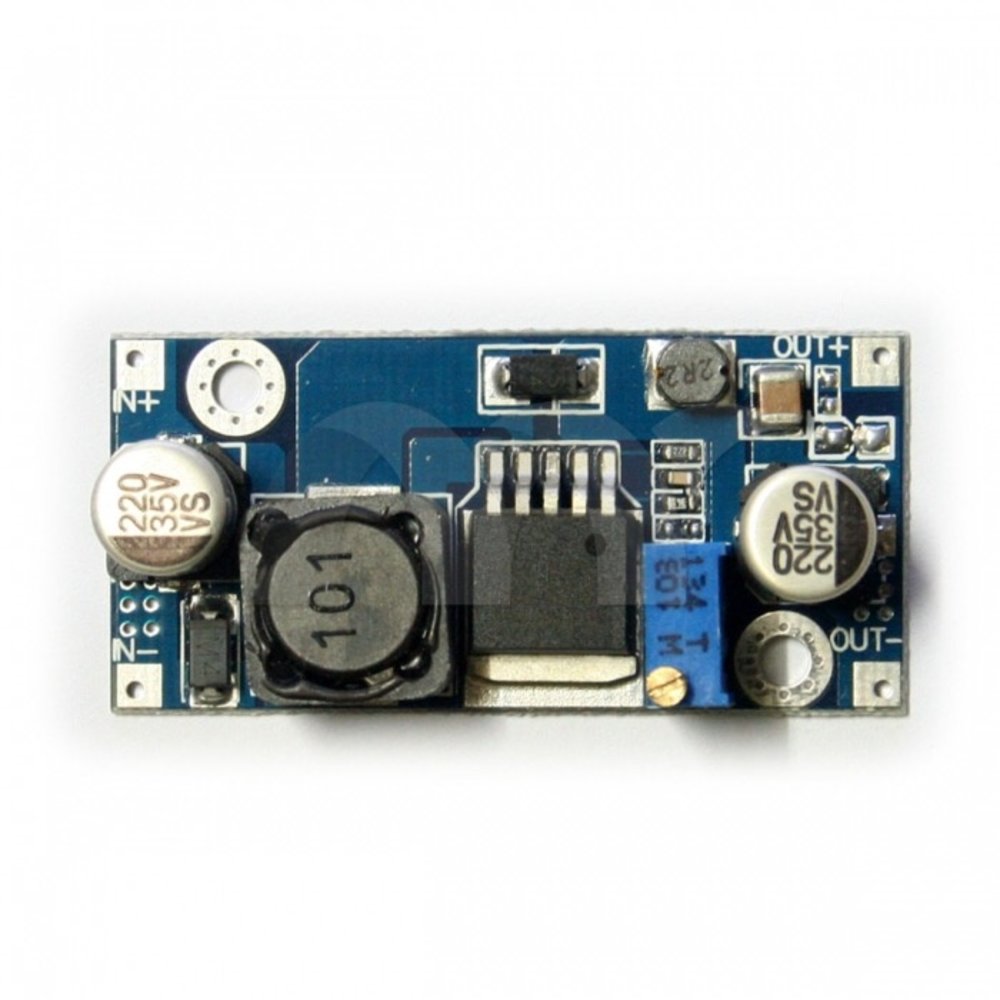

XL6009 step up boost

Artikelnummer: VZ33
Beschikbaarheid: Op voorraad

xl6009 step up boost

XL6009 3-30V to 4-35V XL6009 Adjustable DC-DC Step Up Power Converter Module en
Description: en

  • Size: 4.1 en x 2.2 en x 1.1cm(L en x W en x H) (Approx)
  • Color: Black
  • Wide Input voltage: 3V-30V
  • Output Voltage: 4-35V (Adjustable)
  • Output current: rated current 3A MAX ( Heat-sink Needed)
  • If you need its output power greater than 15W, please add with heat-sink
  • Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
  • Switching Frequency: 50KHz
  • Rectifier: Non-Synchronous Rectification
  • Short circuit protection: current limiting, since the recovery
  • Operating temperature: Industrial grade (-40 degree to +85 degree) (output power 10W or less)
  • Full load temperature rise: 40
  • Load regulation: en plusmn 0.5%
  • Voltage regulation: en plusmn 0.5%
