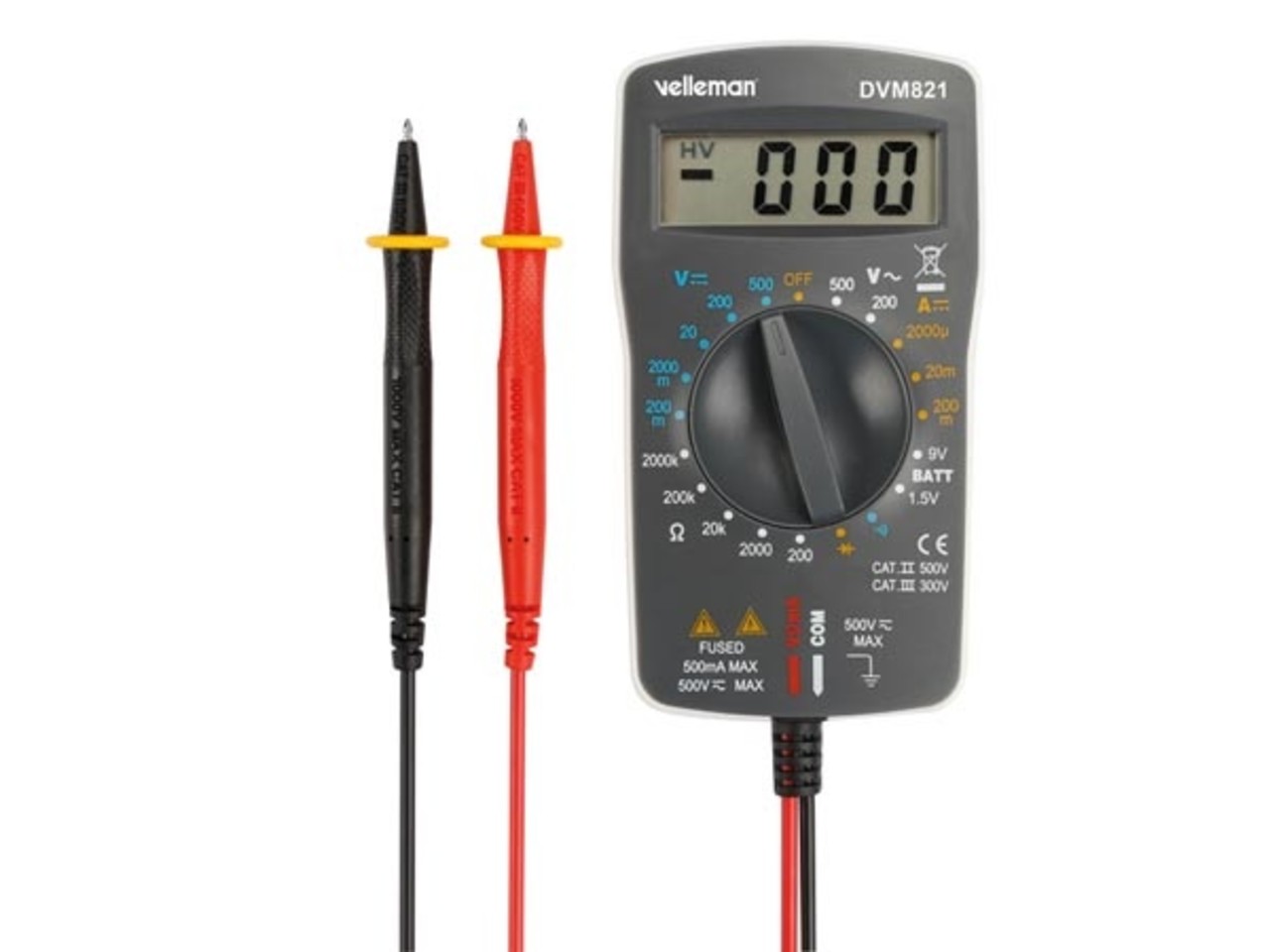

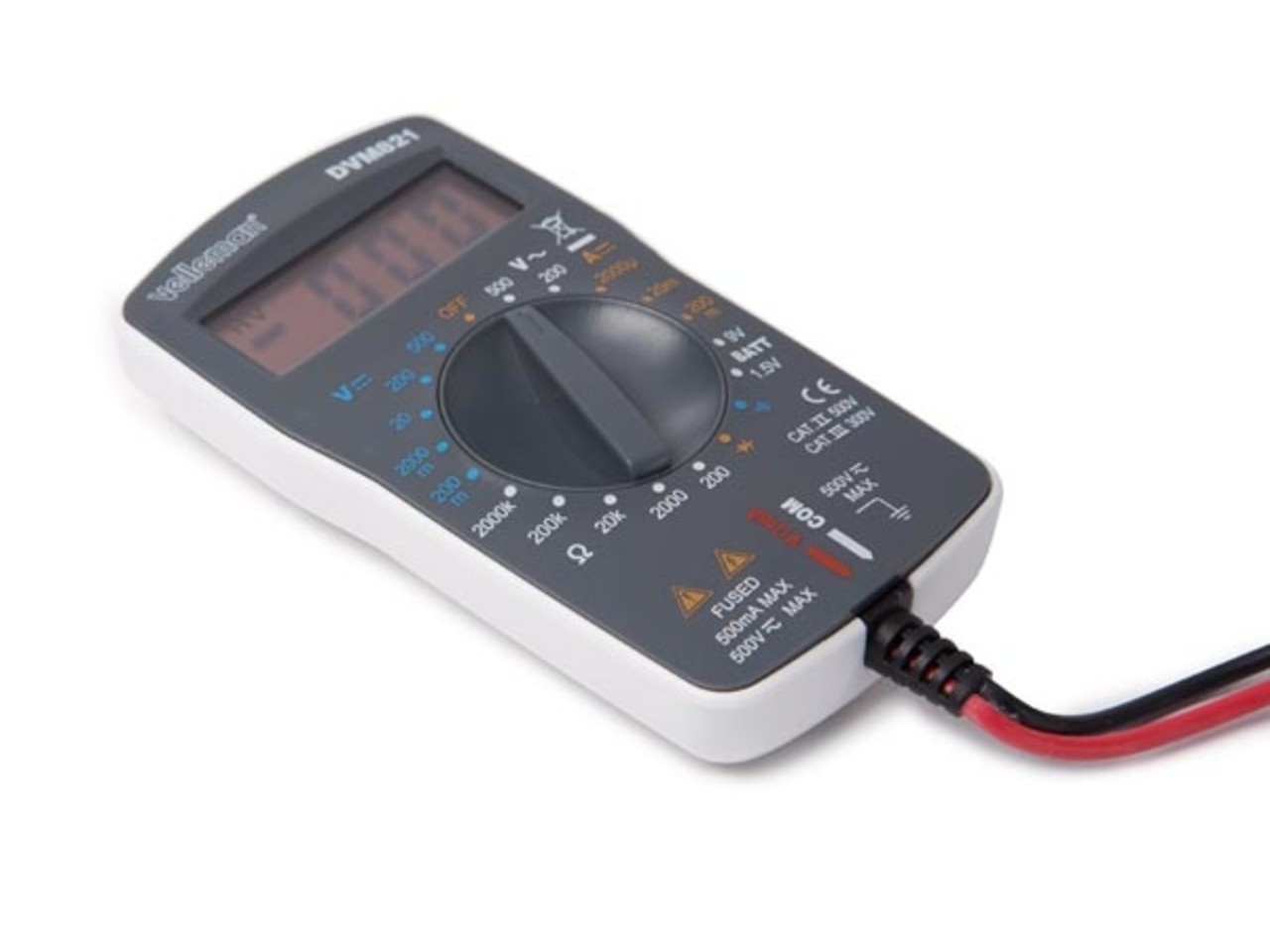

DVM821 Multimeter

Productomschrijving

Elektrische Gegevens
AC Voltage	0-200 V / 500 V basic accuracy: ± (1.5% rdg + 3 digits) input impedance: 450 kOhm frequency range: 40-500 Hz maximum input: 500 V RMS
Hoorbare continuïteitsmeting
Audible Continuity	built-in buzzer sounds if resistance is less than 50 Ohm
Automatische polariteitsaanduiding
Battery Test Measurements	1.5 V, 9 V
Battery Test	basic accuracy: ± (5.0% rdg + 5 digits) overload protection: 0.5 A / 600 V fuse
DC-stroommetingen	20 mA, 200 mA, 2000 μA
DC Current	basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200 mA range overload protection: 0.5A / 600 V fuse in mA range
DC-Spanningsmetingen	0-200 mV, 2 V, 200 V, 500 V
DC Voltage	basic accuracy: ±(1.0% rdg + 2 digits) , ±(1.2% rdg + 2 digits) for 500V range input impedance: 1MOhm maximum input: 500V overload protection: 500V DC or AC rms
Diode test
Diode test specifications	test voltage: approx. 1.8 V
Type Zekering	F 0.50 A / 600 V, 5 x 20 mm (not replaceable)
Out of Range Indication	Yes
Resistance Measurements	0-200 ohm, 20 kohm, 200 kohm, 2000 kohm, 2000 ohm
Resistance	basic accuracy: ± ( 1.0% rgd + 3 digits); ± (1.0% rdg + 5 digits) for 200 Ohm range, ± (1.5% rdg + 3 digits) for 2 kOhm range overload protection: 0.5 A / 600 V fuse
Transistor Test	No
True RMS

Technische Gegevens
Data hold functie
Veiligheidscategorie	CAT III 300 V
Type Spanningstester	AC / DC
Automatische Uitschakelfunctie

Gebruikseigenschappen
Talen Gebruikershandleiding	Nederlands, Engels, Frans, Duits, Pools, Portugees, Spaans
Number Ranges	19
Instelling bereik	Handmatig

Voeding
Aantal Batterijen	2
Batterijen
Battery IEC Size	AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
Battery Composition	Alkaline
Lege Batterij-Indicator

Included
Set contents	wired test leads

€13,95

Op voorraad

Incl. btw

Stukprijs: €0,00 /

Binnen 2 a 3 werkdagen verzonden. Zie verzenddagen
