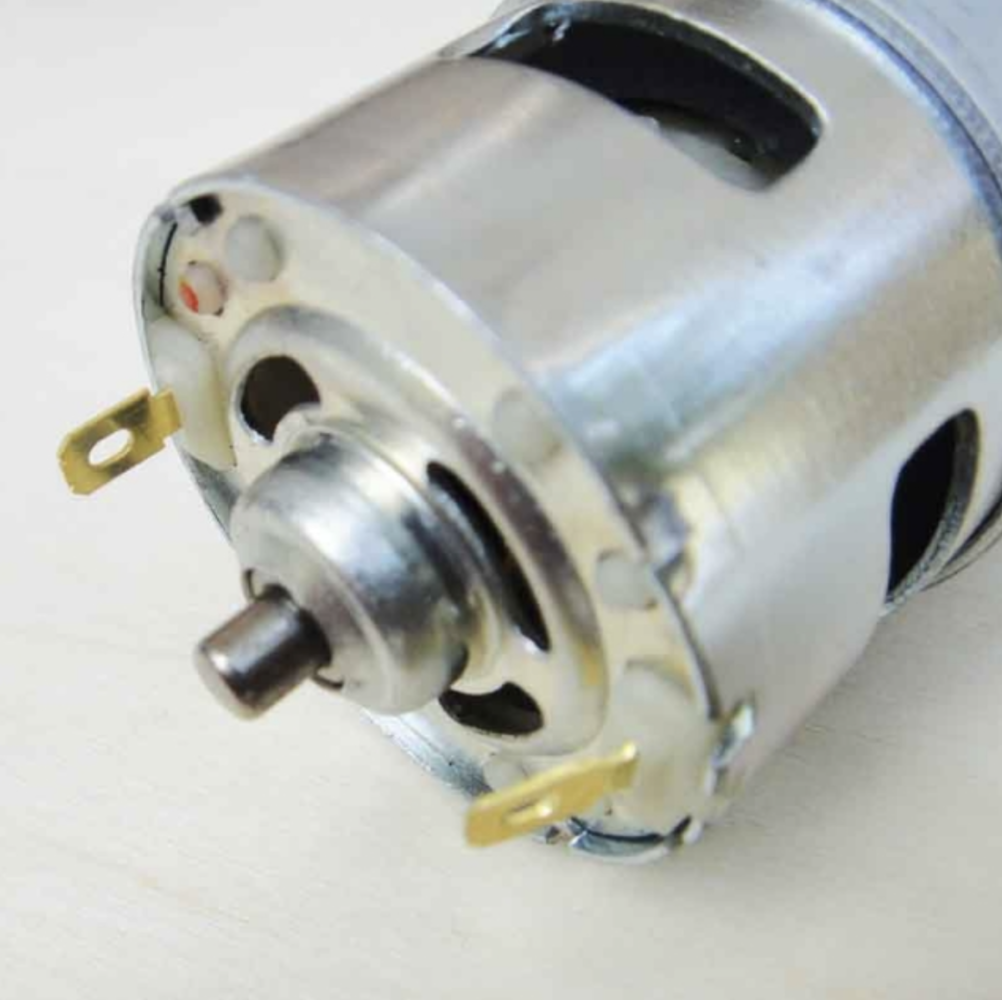

High-speed High-torque 775 DC Motor

High-speed High-torque 775 DC Motor

Motor measured parameters (for reference):
   Rated voltage: 12V
   Voltage range: 12-24V
   Stall current: 3.25A
   No-load current: 0.65A 12V 0.85A 24V
   No-load speed: 12V 4500 rpm torque 0,7kg/cm 24V 9000 rpm 1,3kg/cm
   Motor step diameter: 17.5mm
   Motor step height: 4.5mm
   Output shaft length: 16mm (axis length above the step level)
   Shaft diameter: 5mm shaft
   Motor diameter: 42mm
   Motor length: 66.5mm
   Motor tail step height: about 7mm
   Motor tail shaft length: about 4.5mm
   Pitch of mounting hole: approx. 29mm
   Mounting hole diameter: M4 screw
   Motor weight: 350g
